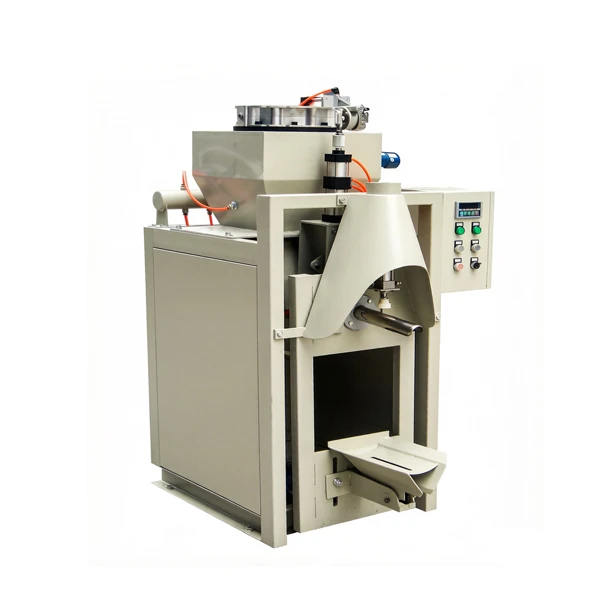

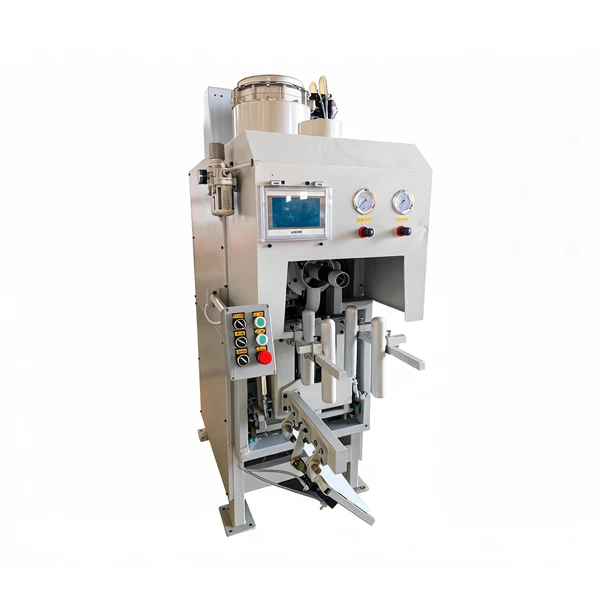

Valve Bag Packing Machine
    Valve Bag Packing Machine - Image 2

    Valve Bag Packing Machine

    Function​: Automatic weighing, filling, and densification of powders/granules into valve bags.
    Weighing Range​: 5 – 50 kg/bag​ (Single hopper)
    Weighing Accuracy​: ±0.2% – ±0.5%​ (Depending on material flowability and speed)
    Packing Speed​: 3 – 12 bags/min​ (Depending on material and bag size)
    Feeding Mode​: Pneumatic Impeller​/ Auger Screw​
    Control System​: PLC + Touch Screen​ (SIEMENS/MITSUBISHI optional)
    Power Supply​: (Customizable: 220V/415V/60Hz)
    Contact Material​: Carbon Steel​ / SS304​ / SS316L​
    Dust Collection​: Integrated Dust Nozzle​
    Certification​: CE, ISO, ATEX, UL, CSA, and etc.



    Send Inquiry

    Send us a inquiry

    Error: Contact form not found.

    The Valve Bag Packing Machine​ is the industry standard for the automatic filling and weighing of dry bulk materials into valve bags (also known as sacks). Unlike open-mouth bagging, valve bag filling seals the product inside the bag through a self-closing spout, eliminating the need for sewing or heat sealing, and ensuring a dust-tight package.

    Our machines are engineered for high precision and reliability, utilizing advanced PLC control systems​ and digital load cell technology. Whether you are packaging free-flowing cement or poorly flowing fine powders, our dual-mode feeding system guarantees accuracy and speed.

    How It Works

    The packing process is a synchronized cycle of filling, weighing, and densification.

    1. Bag Placement:​ The operator slides the valve bag onto the filling spout (or the machine picks it automatically).
    2. Fast Filling:​ The feeder activates at high speed to fill the majority of the bag quickly.
    3. Slow Dosing:​ As the weight approaches the target, the system switches to slow speed for precise final dosing, ensuring high accuracy (±0.2%).
    4. Densification:​ A vibrating table​ or vibrating hopper​ settles the product, removing air pockets and maximizing bag density.
    5. Release:​ Once the target weight is reached, the filling spout retracts, and the dense, sealed bag is released onto the conveyor.

    Key Features

    ✔️ High Weighing Accuracy:​ Equipped with high-precision load cells, ensuring minimal giveaway and maximum profit.
    ✔️Dual Feeding Technology:​ Switchable between Pneumatic Impeller​ (for fast-flowing materials like cement) and Auger Screw​ (for cohesive/fine powders like titanium dioxide).
    ✔️Dust-Free Operation:​ Integrated dust collection nozzle​ connects to your central dust collector, capturing airborne particles at the source and maintaining a clean workspace.
    ✔️User-Friendly Interface:​ Normal brand or SIEMENS or MITSUBISHI PLC​ with a color touch screen for easy parameter setting, formula storage, and diagnostics.



    Technical Table

    ModelSieve area(㎡)Power(KW)Leaning Angle Of ScreenNumber of DecksRevolving frequency
    BGV-10303351~10180~264
    BGV-10363.6351~10180~264
    BGV-12303451~10180~264
    BGV-12364.32451~10180~264
    BGV-15304.55.551~10180~264
    BGV-15365.45.551~10180~264
    BGV-18305.47.551~10180~264
    BGV-18366.487.51~10180~264

    Contact our engineers to obtain more models

    Global Project Cases

    Customization Options

      We understand every industry has unique needs. Botek Gyratory Vibrating Screens can be fully customized:
    🔹 Material: carbon steel, or coated. Stainless steel 304/316L,
    🔹 Screen Mesh: Polyester, stainless steel, or titanium
    🔹 Deck Configuration: 1 to 5 decks, with different mesh sizes per deck
    🔹 Motor & Voltage: International renowned brand motors and reducers . 220V/380V/415V, 50Hz/60Hz,
    🔹 Hoppers & Discharge: Custom inlet/outlet positions, rotary valves, or gravity discharge
    🔹 Automation: Optional PLC control,
    🔹 Accessories: Dust collector, sound enclosure, vibration dampeners

    Applications

    Our Valve Bag Packing Machines are essential across diverse sectors:

    Building Materials:​ Cement, dry mortar, gypsum powder, lime, calcium carbonate.
    Chemicals:​ Plastic resins, masterbatch, pigments, titanium dioxide, carbon black.
    Food & Agriculture:​ Flour, starch, sugar, salt, fertilizer, animal feed.
    Mining & Minerals:​ Fly ash, bentonite, kaolin, silica sand, talc.
    Pharmaceuticals:​ APIs, excipients, vitamin powders (SS316L/GMP compliant).

    Complete Production Line Integration

    From raw material intake to final product dispatch. Our expertise extends beyond vibrating screener to encompass conveyors, millers, dryers, and packing systems. We build cohesive production lines that maximize efficiency and reduce operational costs.

    Get a solution and quote now!

    FAQ

    Selecting the correct  Gyratory Vibrating Screen​ is crucial for ROI. To recommend the most efficient configuration, please provide us with the following details:
    Material Properties:​ Name, bulk density, and moisture content (%).
    Particle Size:​ Current size range (mesh or mm) and target cut point.
    Capacity Requirement:​ Desired output in tons per hour (TPH).
    Separation Goals:​ How many fractions/layers are needed?

    Our engineering team will analyze your data and propose a solution tailored to your specific screening efficiency and output goals.

    We ensure a smooth startup process with comprehensive support:
    Documentation:​ Detailed installation drawings, electrical diagrams, and operation manuals (English version).
    Digital Guidance:​ Lifetime remote technical support via video call for installation, debugging, and troubleshooting.
    On-Site Service:​ For large-scale projects, we can dispatch experienced engineers to your site for installation supervision and staff training (cost applies).
    24/7 Support:​ Our technical hotline is available for urgent inquiries to minimize downtime.
    .

    Absolutely.​ We are a full-service equipment provider. Beyond gyratory vibrating screens, we manufacture:
    Feeding & Conveying:​ Vibrating feeders, belt conveyors, screw conveyors.
    Crushing & Grinding:​ Crushers, grinders, hammer mills.
    Mixing & Packaging:​ Ribbon mixers, blending machines, packing machines.
    We specialize in designing turnkey production lines, integrating all equipment from raw material intake to final packaging.

    Lead times vary based on complexity and current production schedules:
    Standard Models:​ Typically 3–4 weeks​ after deposit confirmation.
    Customized Models:​ Typically 4–6 weeks, depending on material procurement and machining complexity.
    Full Production Lines:​ Usually 6–8 weeks​ (detailed schedule provided upon contract signing).
    We always strive to meet your project deadlines and provide real-time updates on production progress.

    Our machines are designed for user-friendliness and durability:
    Simple Operation:​ Equipped with a user-friendly control panel featuring start/stop buttons and adjustable frequency settings.
    Easy Maintenance:​ Routine checks are straightforward—weekly cleaning, monthly screen tension inspection, and annual bearing lubrication.
    Wearing Parts:​ Key consumables include screen mesh, bouncing balls, sealing gaskets, and springs. All are standardized and easily replaceable.
    Spare Parts Supply:​ We maintain a stock of common spare parts to ensure fast delivery (usually within 3-5 working days) to keep your production running.
